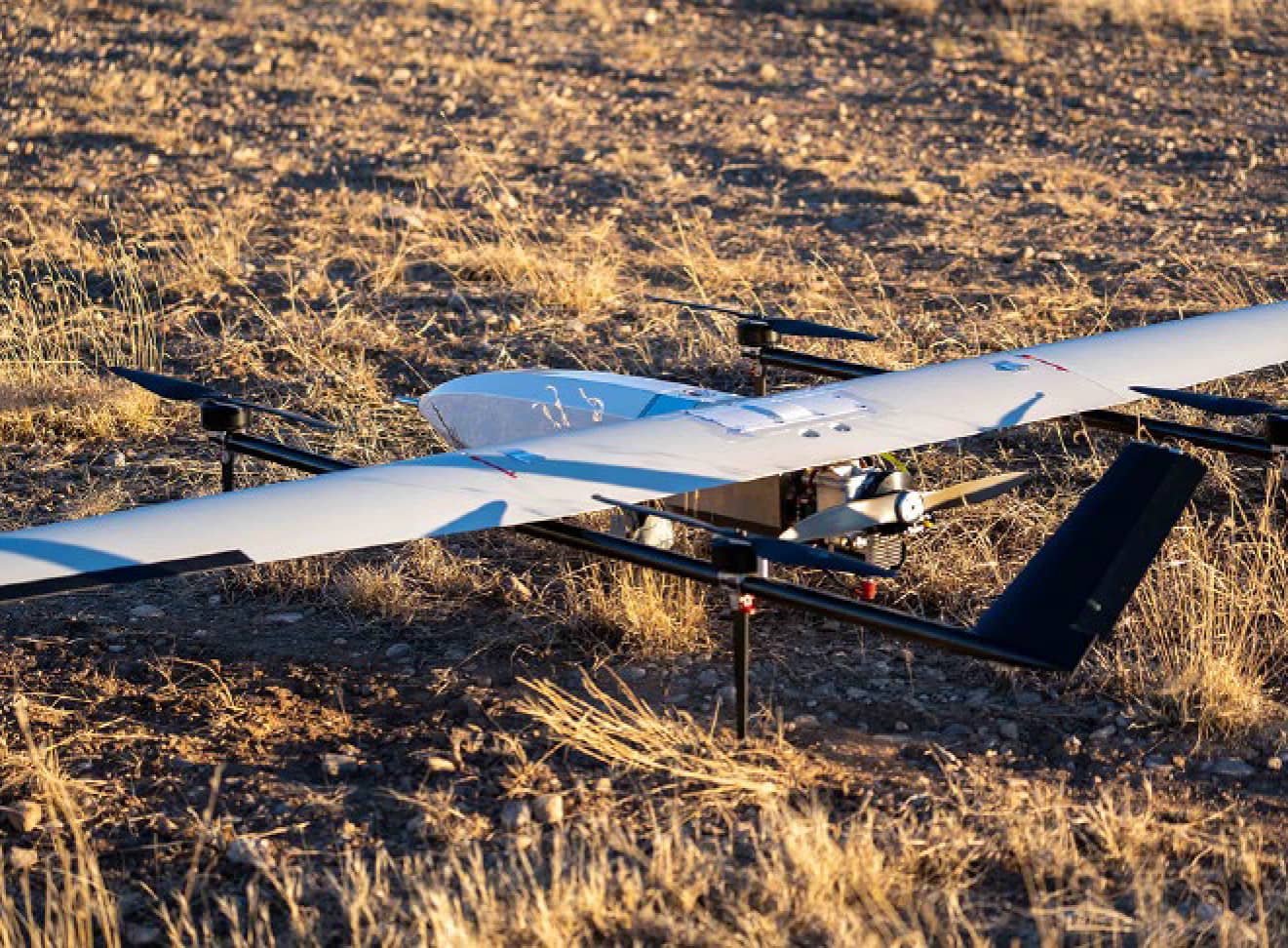

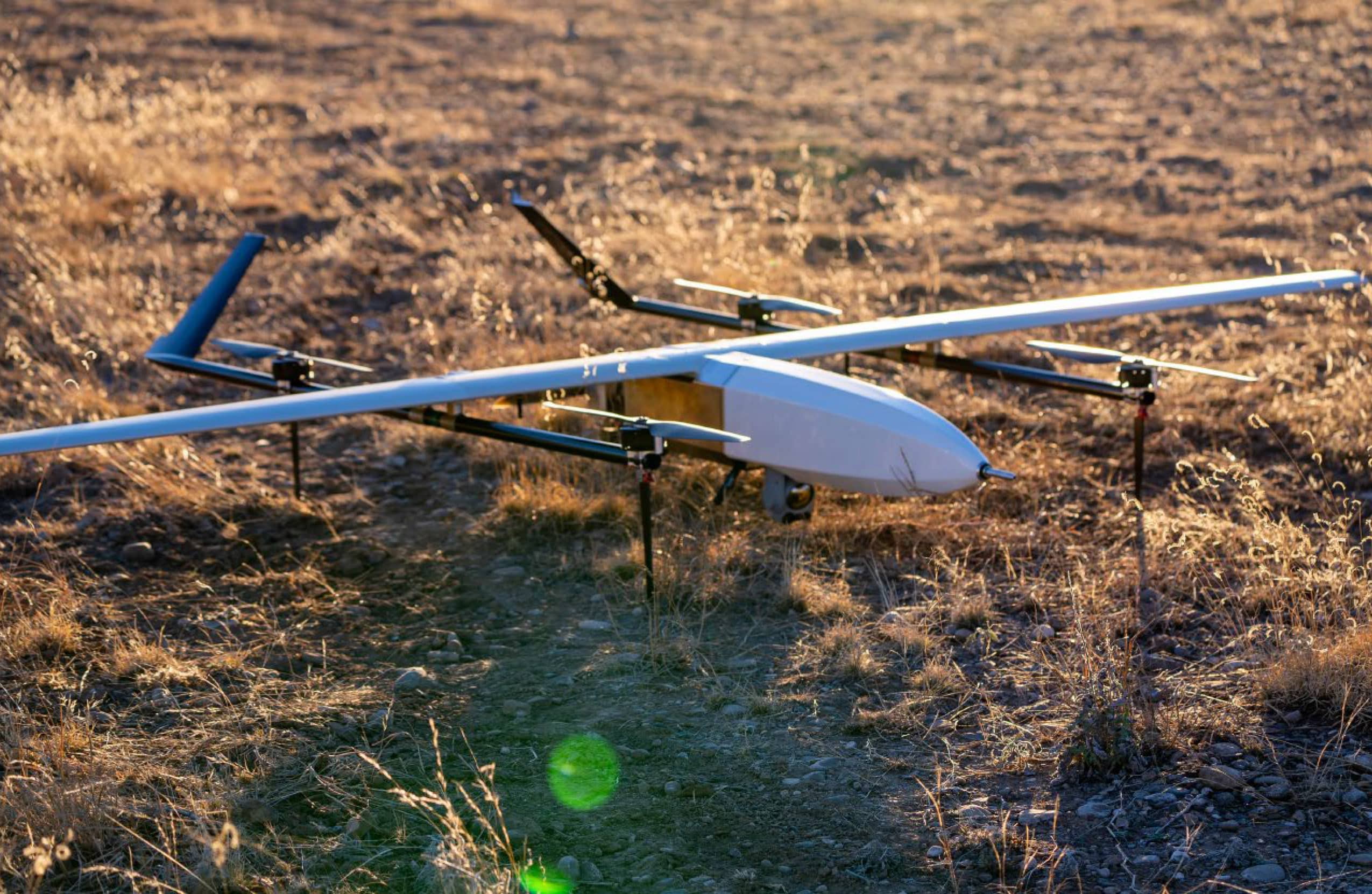

The EchoMAV MK1 is a durable, long-range, vertical take-off and landing (VTOL) UAS engineered for simplified deployment. Using a hybrid power plant with on-board charging, only a quick refuel is required between missions.
Hybrid Power System
The MK1 is powered by a proprietary hybrid propulsion system that combines the endurance of a 2-cycle internal combustion engine with the precision and control of electric power. Its integrated starter/generator allows for rapid power cycling, quiet loitering, and efficient energy management in dynamic environments. This system extends flight times, reduces downtime between sorties, and ensures reliable performance in demanding operational conditions—all without the logistical burden of complex fueling or charging infrastructure.

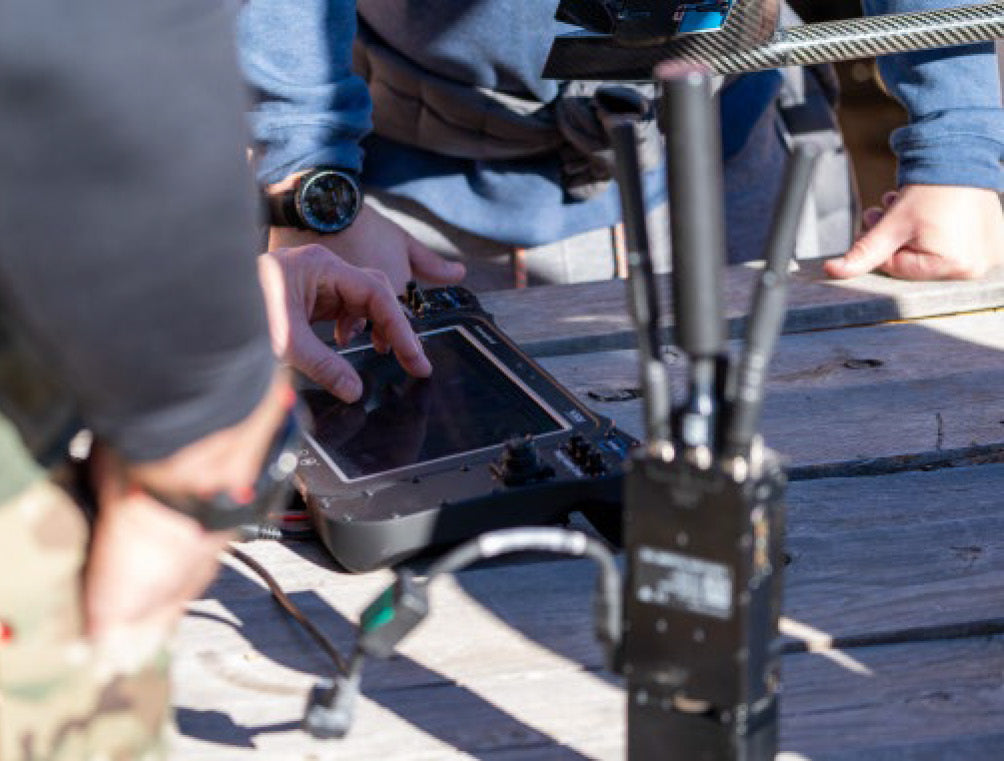

Communication System
The MK1 is equipped with a robust, secure communications suite designed for long-range, high-reliability operations. Utilizing highly encrypted telemetry and payload data links, the MK1 maintains uninterrupted control and real-time video transmission at ranges up to 100 miles. Whether operating in contested environments or over vast, remote terrain, its advanced link architecture ensures critical mission data stays protected and responsive. Built for modern battlefield demands, the MK1’s comms system provides the confidence and clarity needed for beyond-line-of-sight (BLOS) operations.

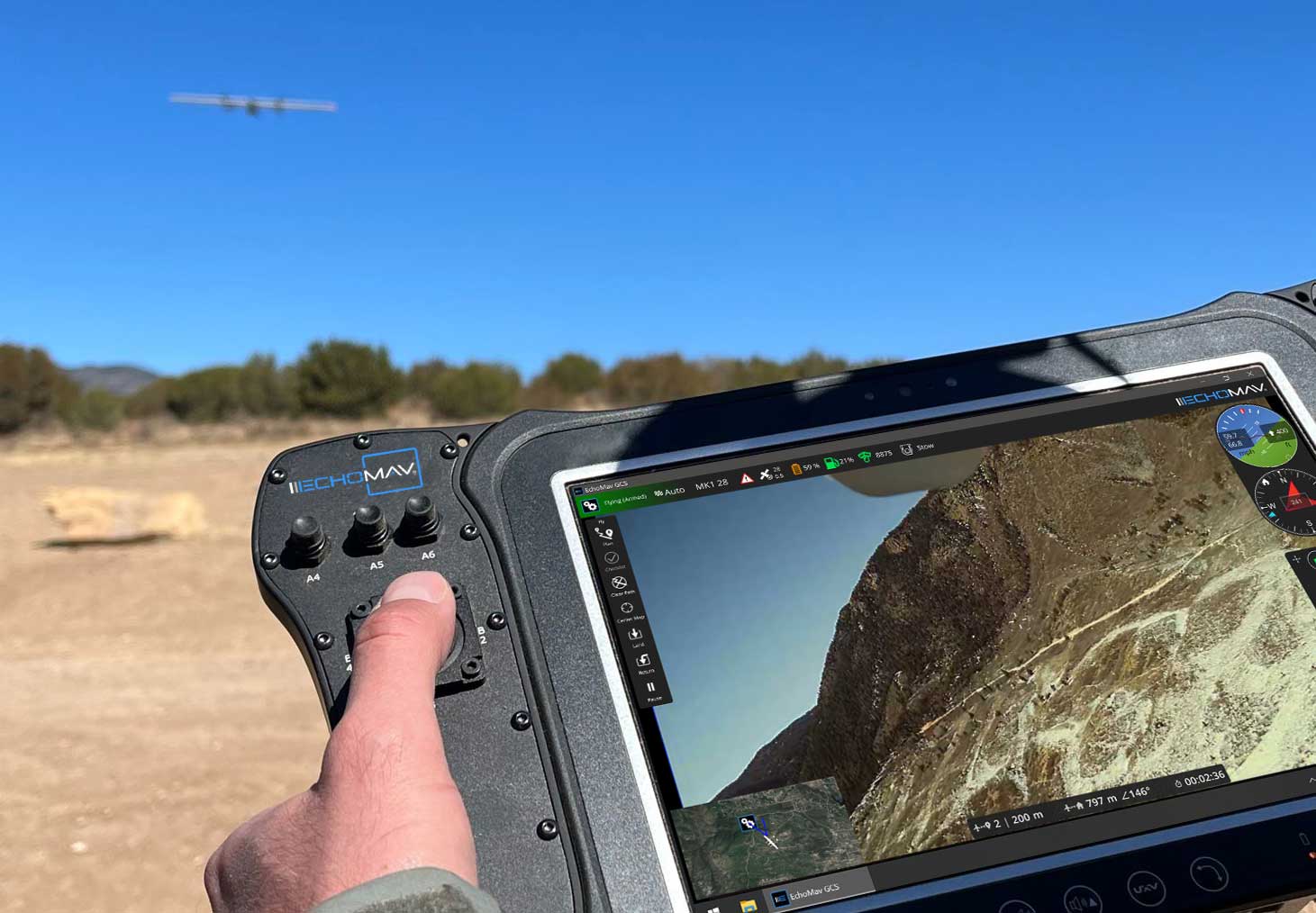

Ground Control
10 inch Ground Control System (GCS) is based on a ruggedized, IP67-rated tablet.

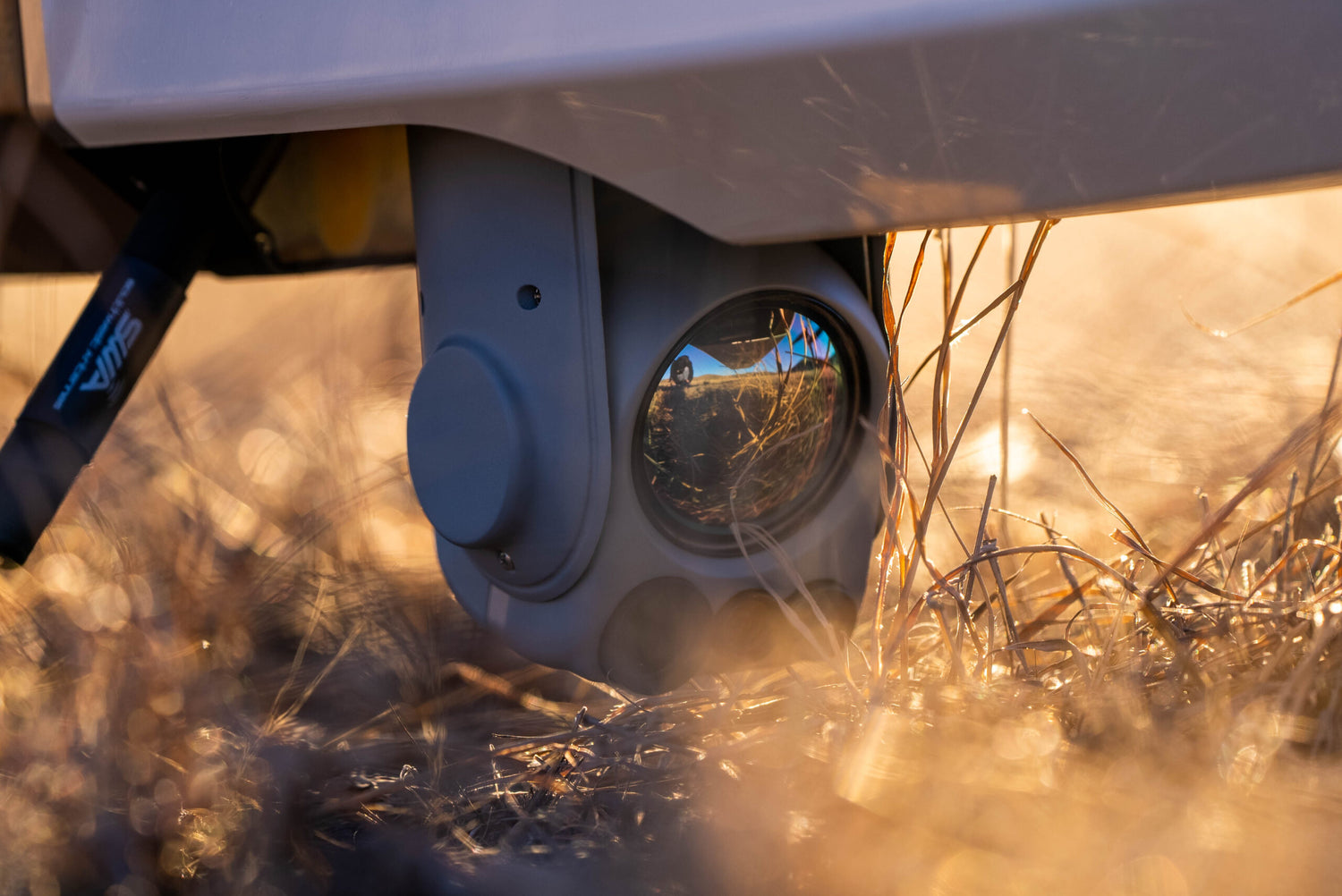

Advanced Surveillance and Reconnaissance
The MK1 is equipped with a cutting-edge ISR payload that delivers unmatched visual clarity and operational flexibility. Its 80x zoom electro-optical camera captures fine detail from extreme distances, while the 360° gimbal rotation allows for continuous target tracking and wide-area observation without repositioning the aircraft. Integrated with a high-resolution 1280×720 thermal sensor, the MK1 provides full-spectrum visibility—day or night, in any weather. Whether identifying heat signatures through foliage or reading license plates from altitude, the MK1’s surveillance suite gives operators total situational awareness with precision and reach.
Modular airframe allows for diverse payloads and cost-effective maintenance.
MK1 Features
EchoPilot AI Compute and Payloads
Combines a redundant flight control system with an Nvidia Jetson companion computer and a RemoteID subsystem.
Cloud Connectivity
Patented MAVNet system provides global cloud connectivity over LTE and/or SATCOM.
Portable
Constructed using aluminum and carbon fiber components throughout, it quickly packs into a 48x20x17 inch Pelican™ ISP case for transport.
Fast Deployment
Time is critical in the field—and the MK1 is built to be airborne fast. With a streamlined design and tool-less assembly, the entire system goes from packed to ready-to-fly in about five minutes. Its modular airframe and quick-connect components enable rapid setup by a single operator, making it ideal for forward operating bases, mobile response teams, and time-sensitive missions. Whether launched from a vehicle, a rooftop, or remote terrain, the MK1 minimizes prep time so you can focus on the objective.
Advanced GNSS and INS
Optional on-board Inertial Navigation System (INS) by VectorNAV® provides high-stability position information and can continue to provide reliable position estimates even during a temporary loss of GNSS signal.
Compliance and Security
NDAA Section 838 compliant. Depending on the communication system configuration, the MK1 is up to FIPS 140-3 compliant.
