MONARK UAS - Modular Tactical Drone

Configure your MONARK

Choose camera, radio, and RTF. Base components will be added automatically.

Drone is built and arrives ready to fly instead of a do-it-yourself build kit.
(Available for government entities only.)
Selected camera will be added as a component.

Select options
DESCRIPTION
SPECIFICATIONS
Export Information
DOWNLOAD FACTSHEET

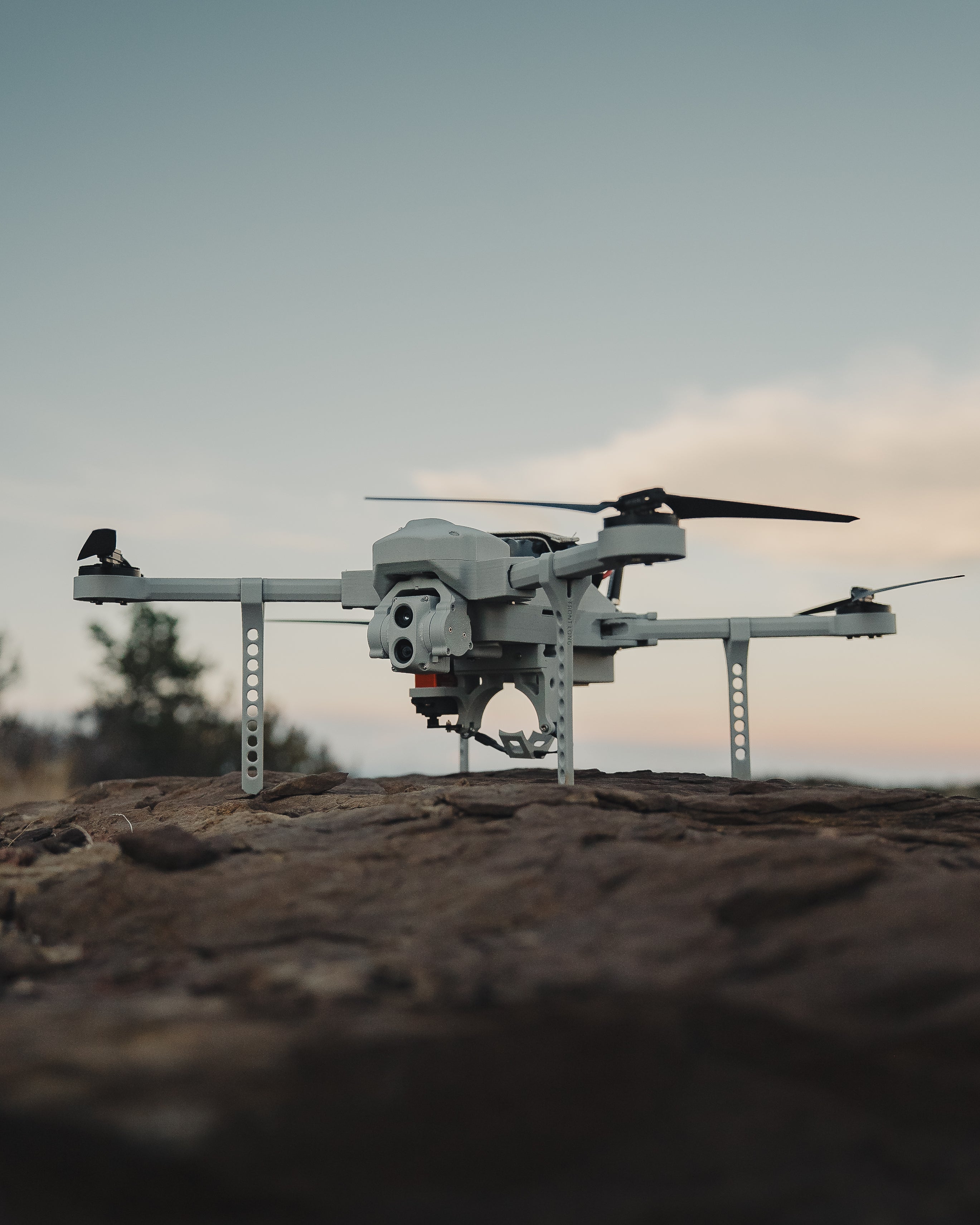

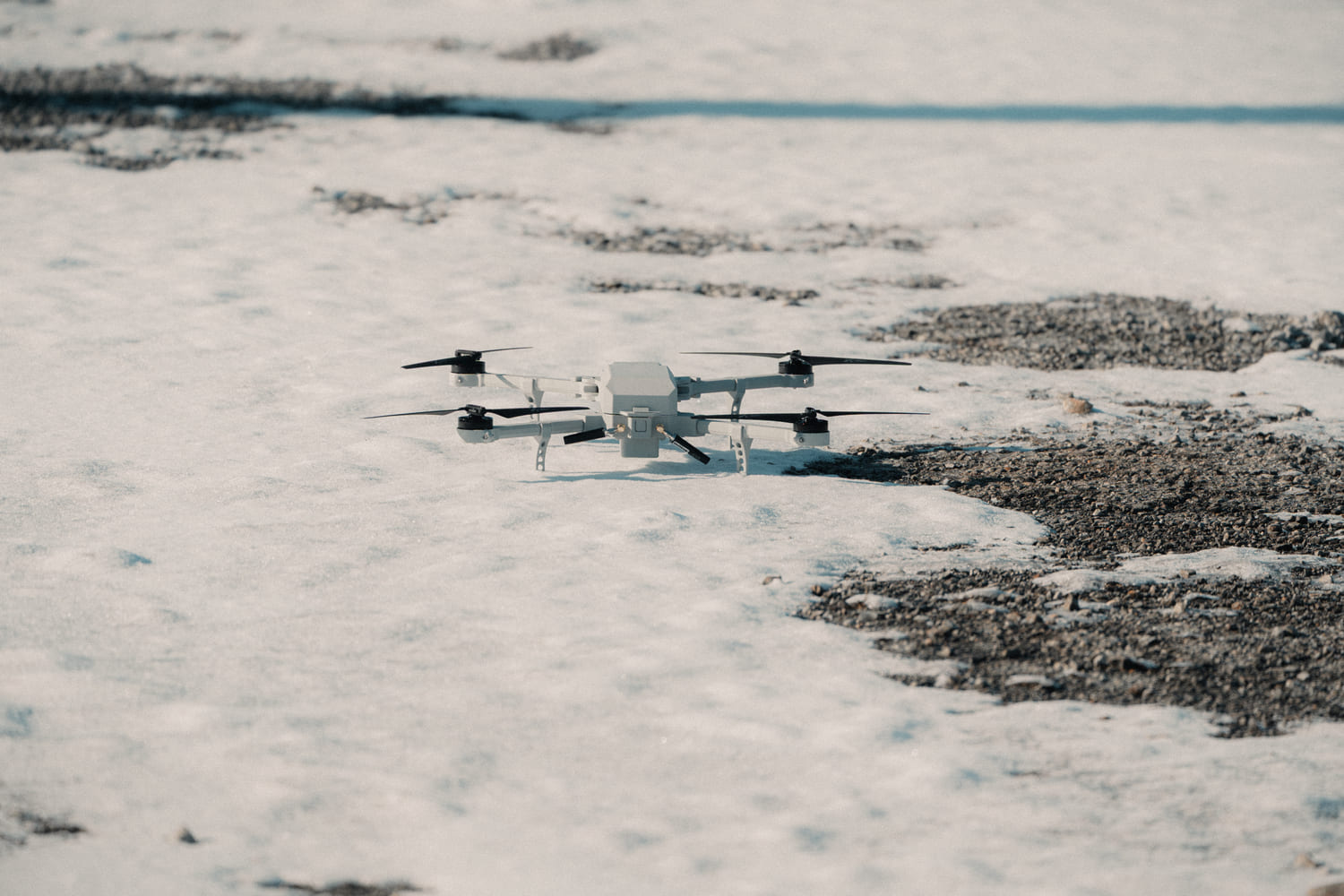

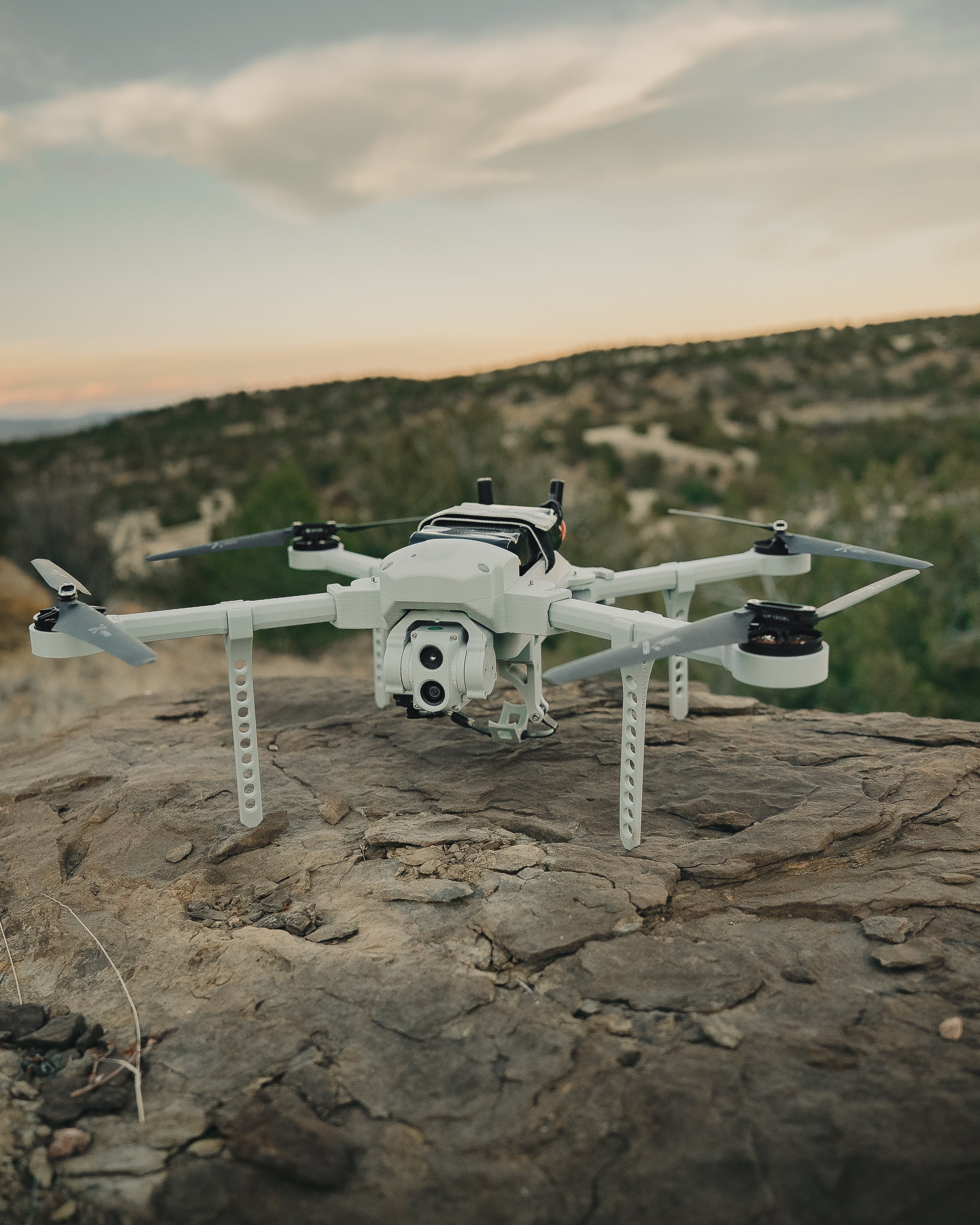

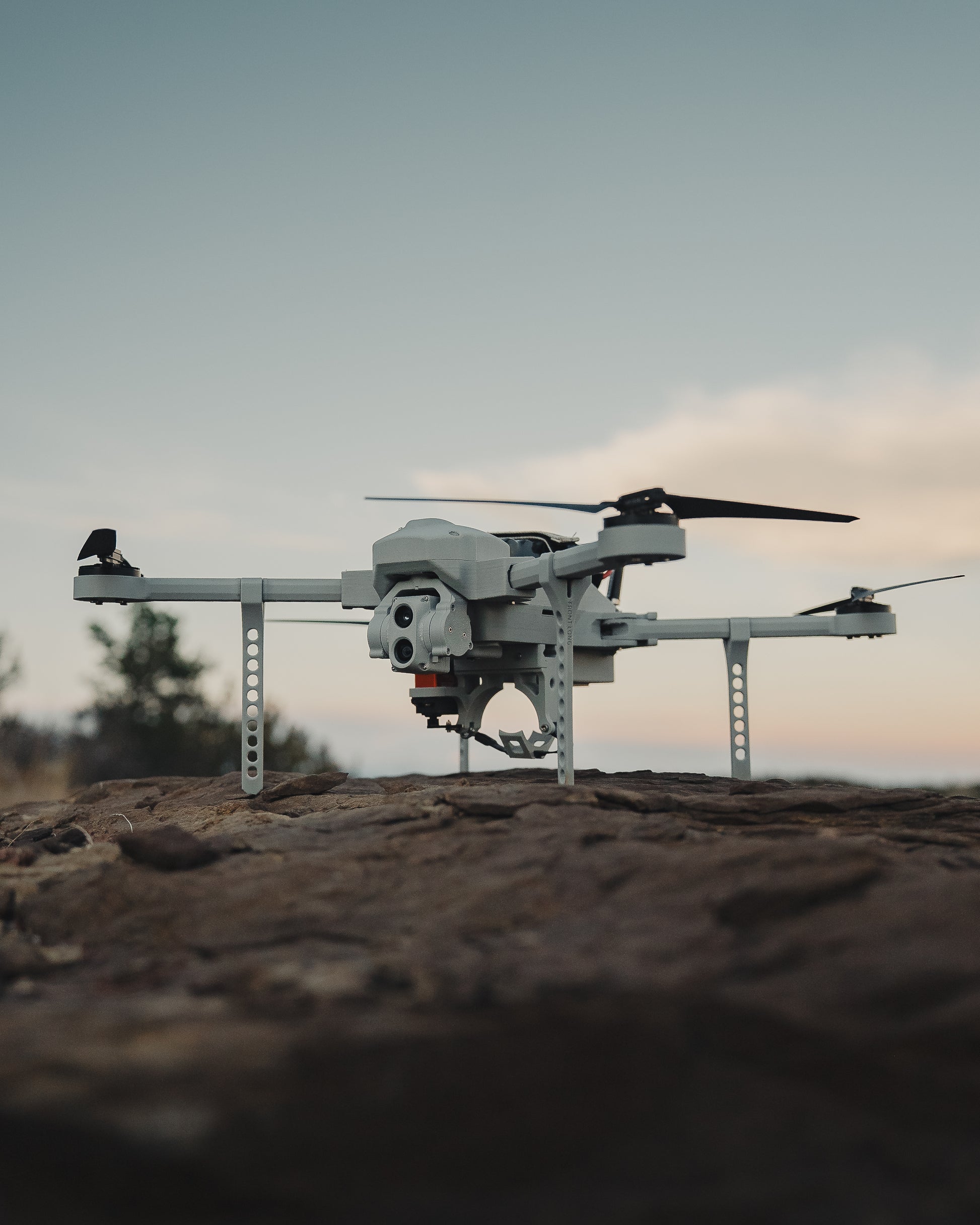

The MONARK UAS is a lightweight, highly packable quadrotor designed for ISR and delivery operations. Built with NDAA-compliant electronics and a 3D-printed, modular chassis, MONARK is field-repairable and upgradable in the field. Supporting multiple radios, sensors, and payloads, MONARK delivers mission-critical flexibility whether deployed as a turnkey system or a build kit.

Link Performance

  • 5–20 km typical range
  • 1.3–2.6 GHz frequencies
  • modular radio bay (Doodle™, Herelink™, Microhard™, optional 5G)

Batteryand Charging

  • 6S 10,000 mAh Li-Ion
  • non-proprietary
  • XT60 compatible

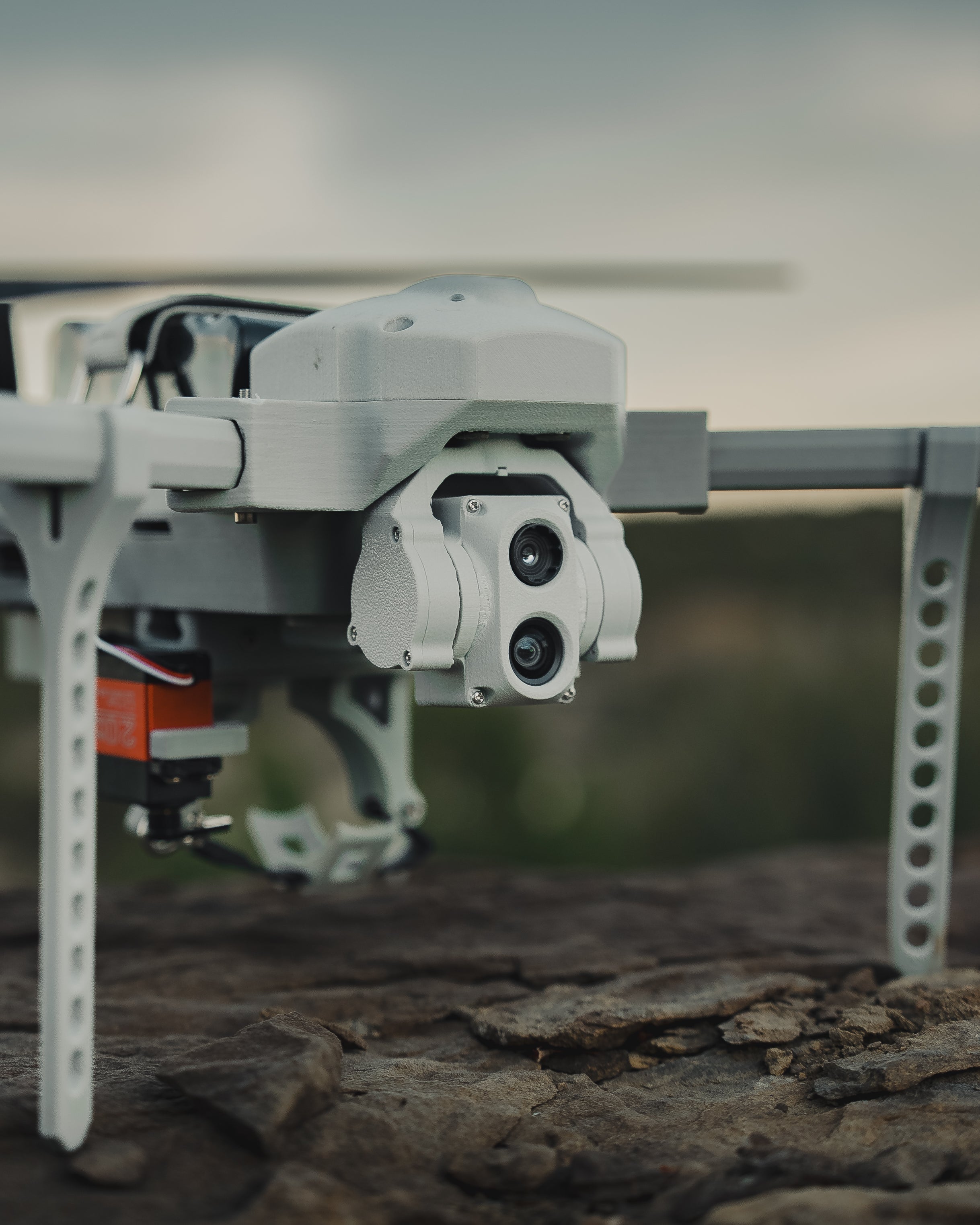

Cameras

  • EchoMAV Fermion Dual EO/Thermal
  • MIPI-CSI2
  • USB 2/3
  • EchoTherm 320
  • FLIR™ Boson 320/640

Mechanical

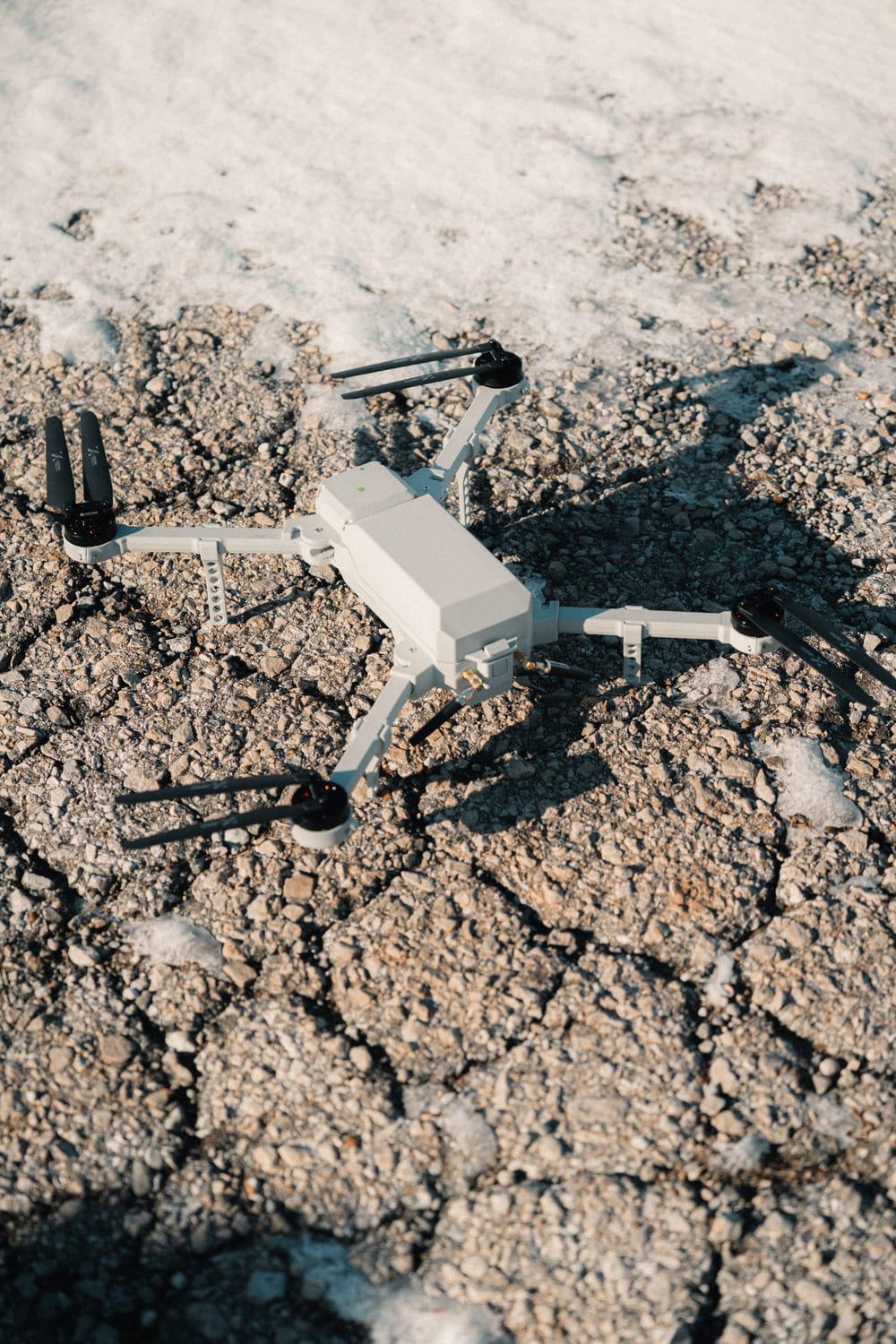

  • Folding arms
  • Diagonal 430 mm
  • L 340 mm
  • W 340 mm
  • H 103 mm
  • Weight 900 g (no batt)
  • 1.8 kg RTF

Performance

  • 42 min endurance (no payload)
  • 30 mph top speed
  • obstacle avoidance
  • optical flow nav

Environmental

  • –20°C to +45°C
  • <75% RH
  • <30 mph winds
  • <2,500 m AGL

Payload

  • Universal release/gripper
  • 1 kg max payload
  • Dedicated payload controller with arming/safety

Electronics

  • EchoMAV SBX Autopilot
  • RPi 4/5 CM
  • h.264/h.265 encoding
  • Ethernet, UART, I²C, GPIO, CAN, PWM
  • USB 3.0 (x2)
  • SD logging
  • AI acceleration (coming soon)

Key Features

  • Lightweight: 900 g (2 lb without battery), 1.8 kg (4 lb) ready-to-fly
  • Hover endurance: 42 minutes (no payload @ 400 ft AGL)
  • Payload capacity: up to 1 kg with universal release/gripper
  • Folding arm design for rapid deployment (<5 minutes)
  • Multiple radios supported: Doodle™, Herelink™, Microhard™, optional 5G onboard
  • Obstacle detection & GPS-denied optical flow navigation
  • Rugged, 3D-printed, field-repairable chassis
  • Compatible with ATAK UAS Tool and EchoMAV’s open-source GCS

What’s Included

  • MONARK Build Kit or RTF package (based on selection)
  • EO/Thermal camera (per configuration)
  • Controller (if RTF selected)
  • Folding propellers
  • Primary battery
  • Protective case (if selected)
  • User manual & fact sheet

Applications

  • Tactical ISR and surveillance
  • Border and perimeter security
  • Search & rescue missions
  • Medical/tactical payload delivery
  • Mapping & reconnaissance
