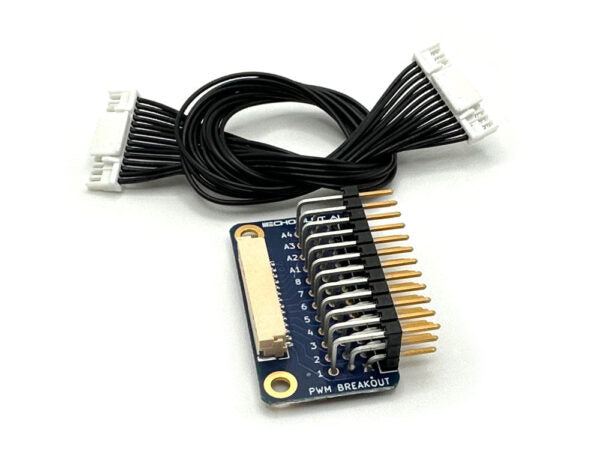

EchoPilot AI PWM Breakout

The PWM Breakout board is included with the purchase of the EchoPilot AI module, but may be purchased separately. It accepts a JST-GH cable assembly (provided) and breaks out the connections into standard 0.1″ headers for use with connectors commonly found on servos and speed controllers.

$75.00
$75.00
-0%
Shipping calculated at checkout.
Sku: ECHOPILOT_AI_PWM
Only -3 items in stock! Out of stock!
EchoPilot AI PWM Breakout
EchoPilot AI PWM Breakout

$75.00
DESCRIPTION
SPECIFICATIONS
Export Information

This is the PWM breakout board included with our EchoPilot AI module. It is available to purchase separately.

The PWM breakout board connects (via included JST-GH cable) to the EchoPilot Carrier board and provides standard 0.1″ spacing, 3 pin servo/ESC connectors. If you are using standard servos and/or ESCs and want to maintain the original connectors, this board is what you need.

IO

12 total PWM Input on JST-GH  connector from the EchoPilot AI Carrier Board (cable included)

12 PWM Ouptuts

Common +VServo Rail (not powered from the EchoPilot)

Common Ground

TBD
