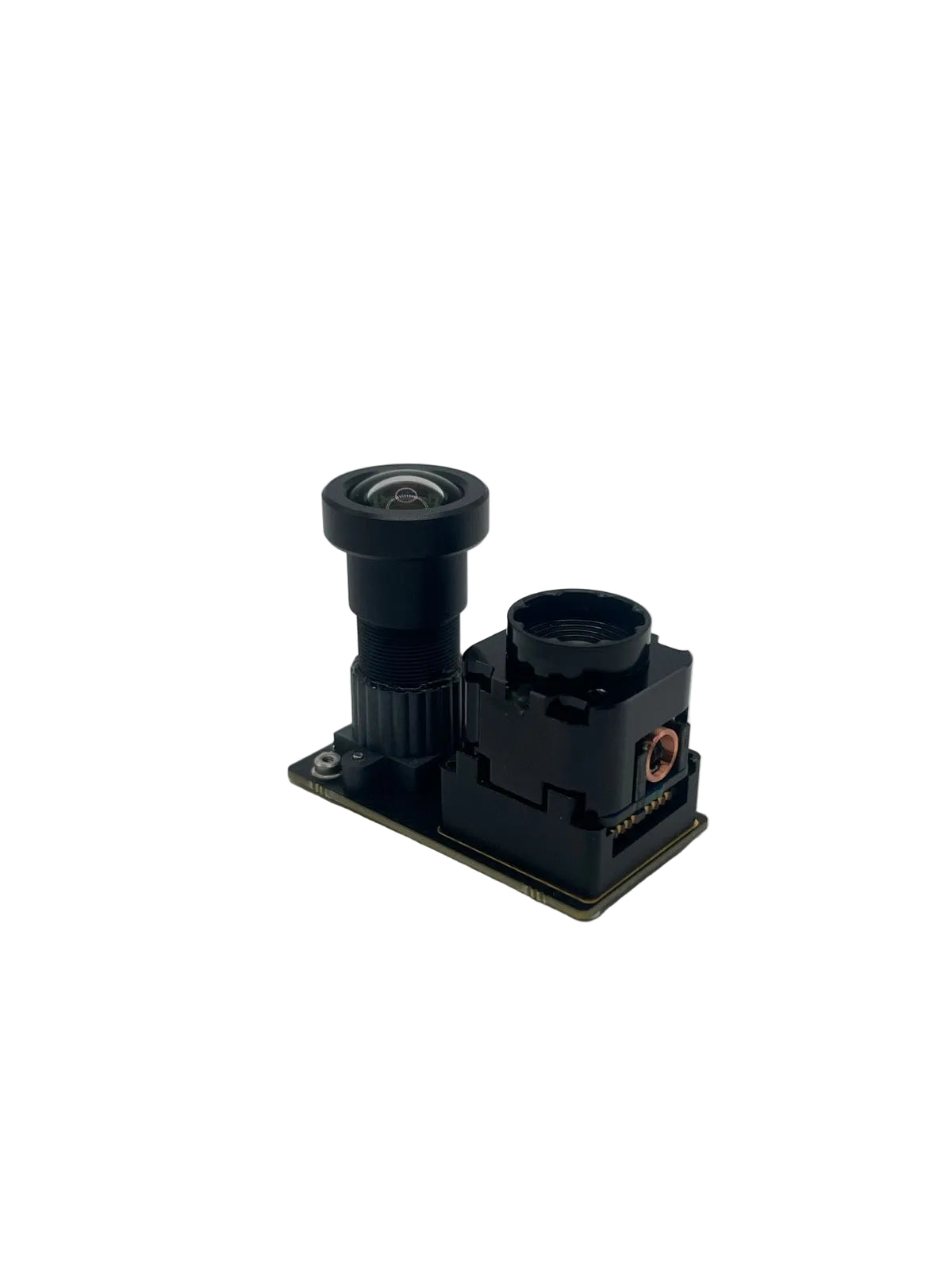

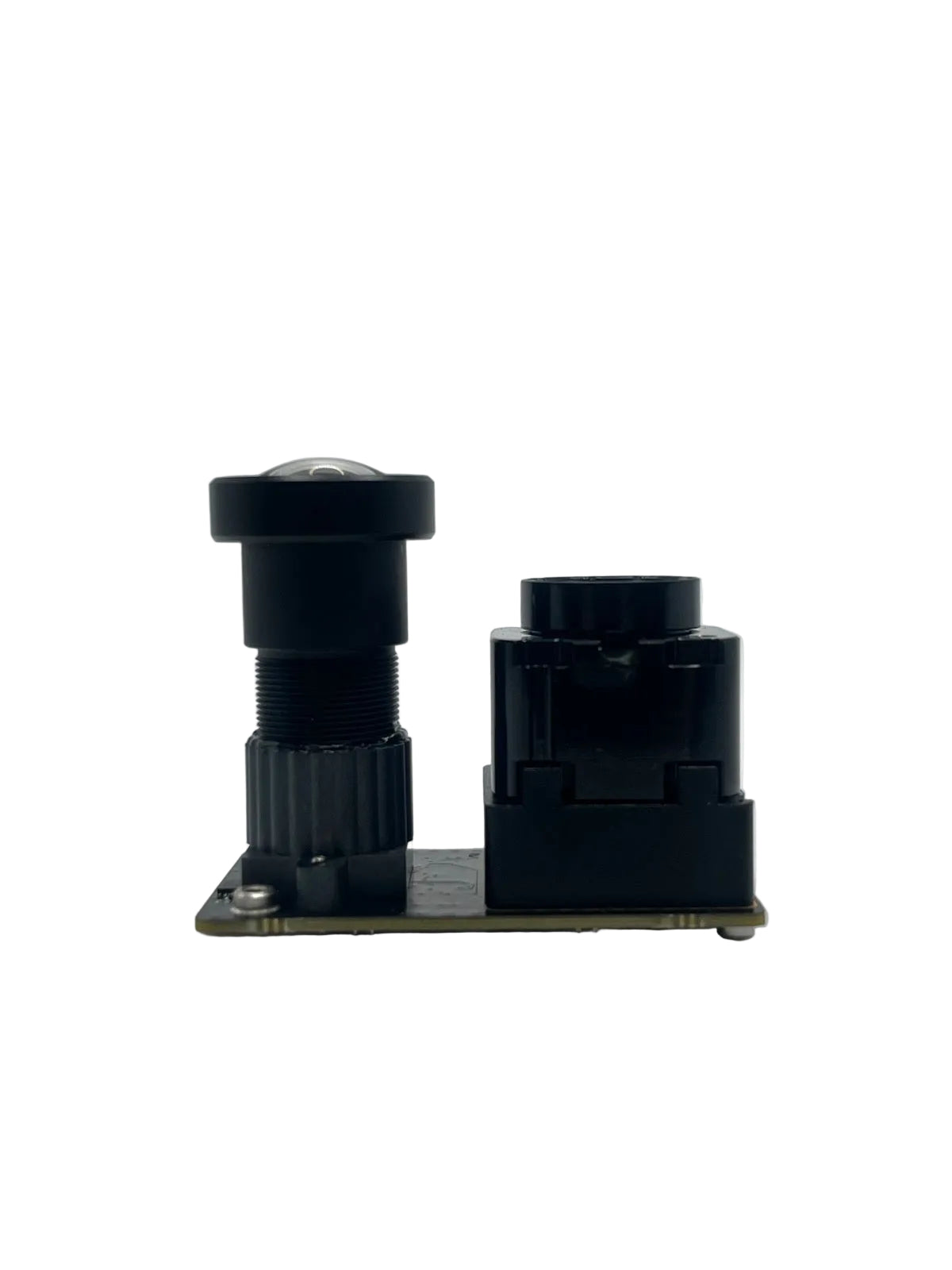

Fermion Dual EO/Thermal Camera System

IMX477 12MP + 320×240 Thermal Camera System

Ultra-lightweight dual-camera system featuring a high-resolution 12MP IMX477 visible-light camera and a 320×240 thermal imaging sensor. Designed for drone integration, this system combines high-resolution optical imaging and thermal imaging in a compact package.

Made in the USA and fully NDAA compliant.

Features & Specifications

• Visible Camera: Sony IMX477, 12MP resolution
• Thermal Camera: 320×240 resolution
• Design: Ultra-lightweight system optimized for UAV applications
• Mounting: FLIR Boson-compatible mounting interface
• Lens: Includes pre-mounted M12 lens

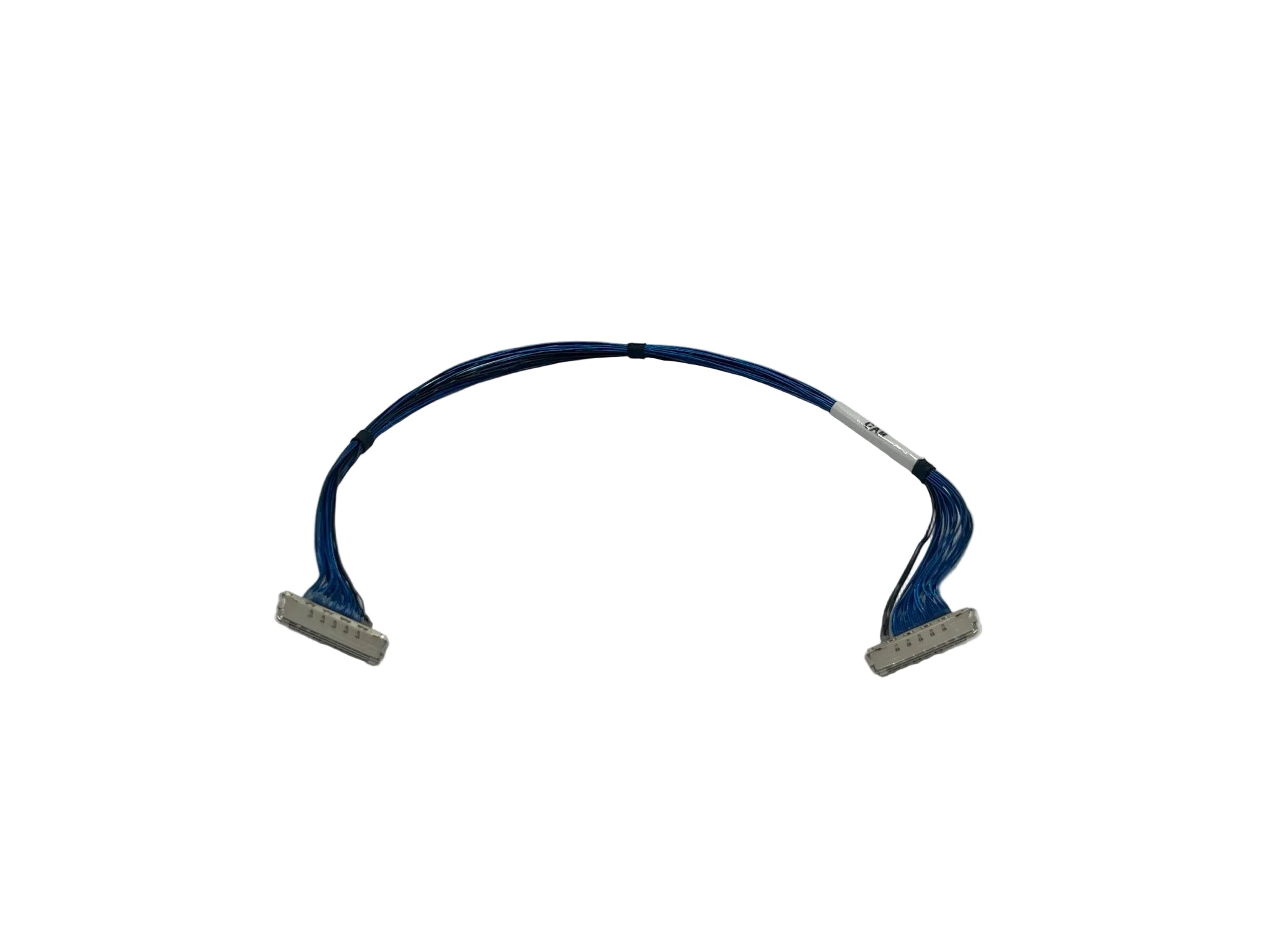

• Cable: Includes 400mm IPEX cable
• Country of Manufacture: USA
• Compliance: Fully NDAA compliant

Software Installation & Documentation

For required software installation and configuration on EchoPilotAI, please refer to the following resources:

• IMX477 Camera: EchoMAV Camera Modules GitHub Repository
• 320×240 Thermal Camera: EchoTherm Documentation

Included Components

• IMX477 12MP visible-light camera
• 320×240 thermal imaging camera
• Pre-mounted M12 lens
• 400mm IPEX cable
